AC Stroom: 40A/600A Spanning: 4V/40V/400V/600V
DC Spanning: 400mV/4V/40V/400V/600V
Weerstand: 400O/4kO/40kO/ 400kO/4MO/40MO
Capaciteit: 4nF/40nF/400nF/4µF/40µF/100µF
Frequentie: 10MHz (enkel ter referentie)
Temperatuur: -40 - 1000°C
Bek opening: 28mm
Diode / Continuïteit / Transistor
9V Battery (Incl)
Meer informatie

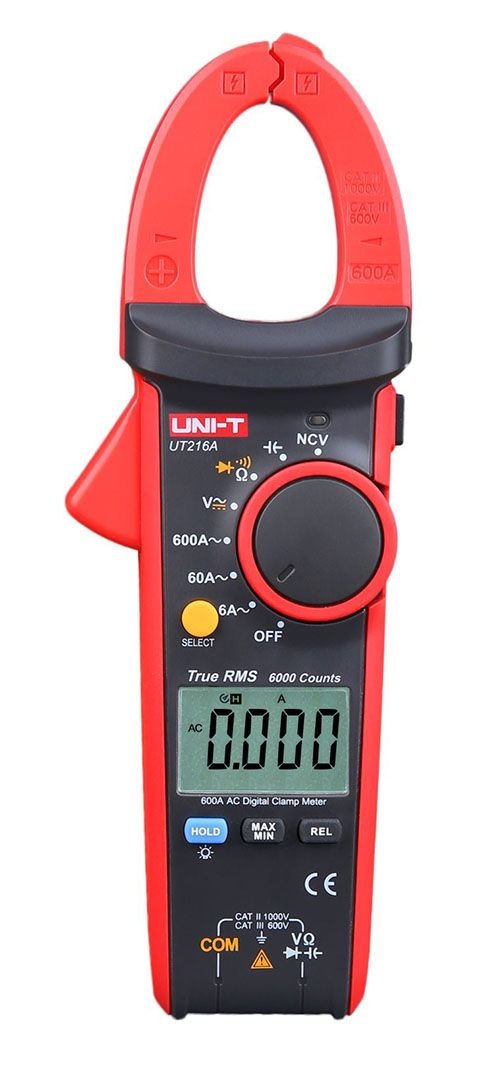

| Referentie | UT216A |
|---|---|
| Merk | UNI-T |
| Specifications | Range | UT216A |
| AC current (A) | 600A | ±(2.5%+5) |
| AC current frequency response | 50-60Hz | |
| AC voltage (V) | 750V | ±(1.2%+5) |
| AC voltage frequency response | 40~400Hz | |
| DC voltage (V) | 1000V | ±(0.8%+1) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| Jaw opening | 30mm | |
| True RMS | √ | |
| Diode | Around 3.0V | √ |
| NCV | √ | |
| Data hold | √ | |
| Relative mode | √ | |
| MAX/MIN | √ | |
| LCD backlight | √ | |
| Flashlight | √ | |
| Auto power off | √ | |
| Continuity buzzer | √ | |
| Low battery indication | ≤3.6V | √ |
| Input protection | √ | |
| Input impedance for DCV | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 38mm x 24mm | |
| Product color | Red and grey | |
| Product net weight | 280g | |
| Product size | 220mm x 75mm x 40mm | |
| Standard accessories | Batteries, test leads | |
| Standard individual packing | Gift box, carrying bag, English manual | |
